Installing a thin brick facade used to mean coordinating multiple trades and components—insulation, weather barriers, drainage channels, and attachment systems. Each piece had to work together, and any gap in the design could lead to moisture problems, thermal bridging, or misaligned brick rows. Old Mill Building Products gives you an easier path with insulated wall systems that handle attachment, alignment, and drainage in one engineered assembly.

This article explains how insulated wall panels simplify thin brick and thin stone veneer installations. You'll learn how these systems address common installation challenges and why they've become a go-to choice for architects, builders, and installers across commercial and residential projects.

Key Takeaways: How Insulated Wall Systems Support Thin Brick Facades

• Insulated wall systems combine exterior insulation, moisture barriers, and attachment points into one factory-engineered panel for faster installation.
• Built-in alignment channels eliminate guesswork and help you achieve straight, consistent brick courses across large wall areas.
• Old Mill Building Products' Panel+ system integrates drainage channels and ventilation to protect against moisture damage long-term.
• Pre-designed attachment points reduce labor time and remove the need to coordinate separate trades for insulation and veneer support.
• NFPA 285-compliant assemblies ensure your thin brick facade meets fire safety codes for commercial and multi-family construction.

What Is an Insulated Wall System for Thin Brick?

An insulated wall system is a pre-engineered assembly that combines rigid insulation, an air and water barrier, and attachment points for thin brick or thin stone veneer. Rather than installing these components separately on the jobsite, you get a single panel that handles multiple functions at once.

These systems typically consist of expanded polystyrene (EPS) or extruded polystyrene (XPS) foam bonded to a substrate. The foam includes pre-formed grooves or channels that serve as guides for brick placement and pathways for moisture drainage. This design eliminates the piecemeal approach of traditional cavity wall construction.

Specifiers often choose insulated wall systems because they reduce the number of installation steps. Instead of coordinating separate contractors for insulation, weather barriers, and masonry support, one panel addresses all three needs.

How Do Insulated Wall Panels Handle Brick Attachment?

Attachment is one of the biggest concerns when installing thin brick on exterior walls. Traditional methods often require metal clips, adhesive beds, and mortar application—all of which add labor hours and potential failure points.

Insulated wall panels address this by incorporating attachment grooves directly into the foam. These grooves accept brick adhesive or mechanical fasteners, giving you a stable bond between the veneer and the substrate. The result is a secure attachment that resists wind loads and thermal movement.

Old Mill Building Products' Panel+ system takes this further with a patented design that allows two installation methods. You can use adhesive application for a clean, mortar-free look, or apply thin brick using traditional mortar techniques over the panel surface.

Why Does Built-In Alignment Matter for Thin Brick Facades?

Achieving straight, level brick courses across large wall areas requires precise layout and careful attention at every row. On traditional builds, slight deviations accumulate and become visible imperfections by the time you reach the top of the wall.

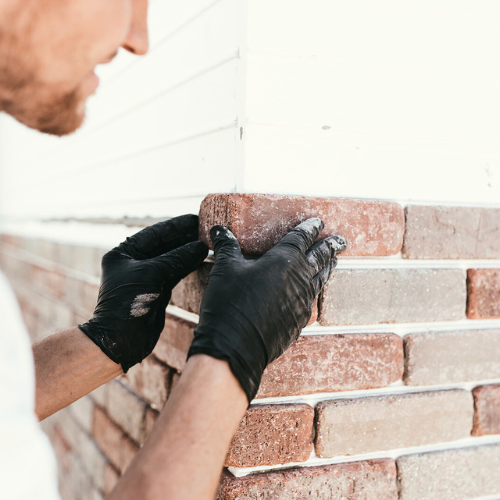

Insulated wall panels solve this with pre-formed alignment channels. These channels create consistent coursing guides across the entire panel surface. When you place your thin brick into these channels, each piece automatically aligns with the next—no laser levels or constant adjustments needed.

For architects specifying thin brick on commercial buildings, this alignment consistency translates into a cleaner finished appearance. The facade looks intentional and precise, matching the design intent from drawings to completed structure.

How Do Insulated Wall Systems Manage Moisture and Drainage?

Water management is critical for any exterior wall assembly. According to research published by the Building America Solution Center, most exterior cladding systems leak to some degree. The key is creating a pathway for that water to drain safely away from the structure.

Insulated wall panels incorporate cross-drainage channels that run both horizontally and vertically through the foam. When moisture penetrates past the thin brick facade, it encounters these channels and drains down to weep points at the base of the wall. This prevents water from pooling behind the veneer where it could cause damage.

Old Mill Building Products engineers Panel+ with built-in ventilation channels that work alongside the drainage system. Air movement through these channels helps dry out any residual moisture, extending the life of the wall assembly and preventing mold growth.

What Thermal Benefits Do Insulated Wall Panels Offer?

Thermal bridging—where heat transfers through framing members and bypasses insulation—can account for up to 30 percent of heat loss in insulated buildings. Insulated wall panels address this by placing rigid foam on the exterior side of the wall structure, creating an uninterrupted thermal barrier.

Panel+ delivers an R-value of 4.2 per inch of foam thickness. With thickness options ranging from 1 inch to 4 inches (plus custom options), you can specify the insulation level needed to meet energy codes in your climate zone. A 4-inch panel achieves an R-value of approximately R-20.

This exterior insulation placement also keeps the wall sheathing warmer during cold weather. That reduces the risk of condensation forming inside the wall cavity—a common source of moisture damage in traditionally insulated assemblies.

Do Insulated Wall Systems Meet Building Codes for Fire Safety?

For commercial buildings and multi-family residential projects, NFPA 285 compliance is often mandatory. This fire test standard evaluates how wall assemblies perform when exposed to flames, ensuring the system won't contribute to fire spread up the building exterior.

Old Mill Building Products' Panel+ system has been tested and certified as fully NFPA 285 compliant. This means architects and specifiers can include Panel+ with thin brick veneer in their designs without worrying about fire code objections during plan review.

The system also meets requirements outlined in the 2021 International Building Code (IBC) for fire resistance rated construction and IECC requirements for air barriers. Having these certifications from a single manufacturer simplifies your specification process.

How Much Labor Can You Save with Insulated Wall Systems?

Traditional thin brick installation involves multiple trades working in sequence: framing, sheathing, weather barrier installation, insulation, and finally masonry work. Each transition point creates scheduling complexity and potential delays.

Insulated wall systems collapse these steps into fewer stages. Old Mill Building Products reports that Panel+ installations can reduce labor costs by up to 60 percent compared to conventional methods. The reduction comes from eliminating separate insulation and weather barrier installation, faster brick placement using alignment channels, and fewer callbacks related to moisture issues.

For general contractors managing tight schedules, this labor efficiency means more predictable completion dates. The factory-controlled quality of the panels also reduces field adjustments and rework.

In Conclusion: Choosing the Right Insulated Wall System for Your Project

Insulated wall systems offer a practical solution for specifiers and installers who want the timeless appearance of thin brick without the complexity of traditional cavity wall construction. By combining insulation, drainage, alignment, and attachment into one panel, these systems reduce labor, improve thermal performance, and simplify code compliance.

When evaluating options, look for systems that deliver documented NFPA 285 compliance, built-in drainage channels, and flexible installation methods. Old Mill Building Products' Panel+ delivers all three, along with a 15-year system warranty that backs the performance claims.

FAQs about How Insulated Wall Systems Support Thin Brick Facades

What is an insulated wall panel for thin brick?

An insulated wall panel is a pre-engineered assembly combining rigid foam insulation, weather barrier protection, and attachment points for thin brick veneer. Old Mill Building Products' Panel+ system integrates all these elements into one product, simplifying your installation and reducing the number of jobsite trades required.

How do insulated wall panels prevent moisture damage?

Insulated wall panels include built-in drainage channels that direct water down and out of the wall assembly. Old Mill Building Products designs Panel+ with cross-drainage and ventilation channels that help moisture escape while allowing air circulation behind the veneer.

Can I use any thin brick with an insulated wall system?

Most kiln-fired thin brick products work with insulated wall systems, though you should verify compatibility with the panel manufacturer. Old Mill Building Products offers a full range of thin brick options designed specifically for use with Panel+, ensuring proper fit and bond strength.

Do insulated wall systems meet energy code requirements?

Yes. Insulated wall panels help you meet IECC and ASHRAE 90.1 requirements for exterior insulation and air barriers. Panel+ delivers up to R-20 insulation value depending on foam thickness, helping your project achieve energy efficiency targets.

Are insulated wall panels code compliant for fire safety?

Old Mill Building Products' Panel+ system is fully NFPA 285 compliant, meeting fire test standards required for commercial and multi-family construction. This certification covers the complete assembly including thin brick veneer, not just individual components.
