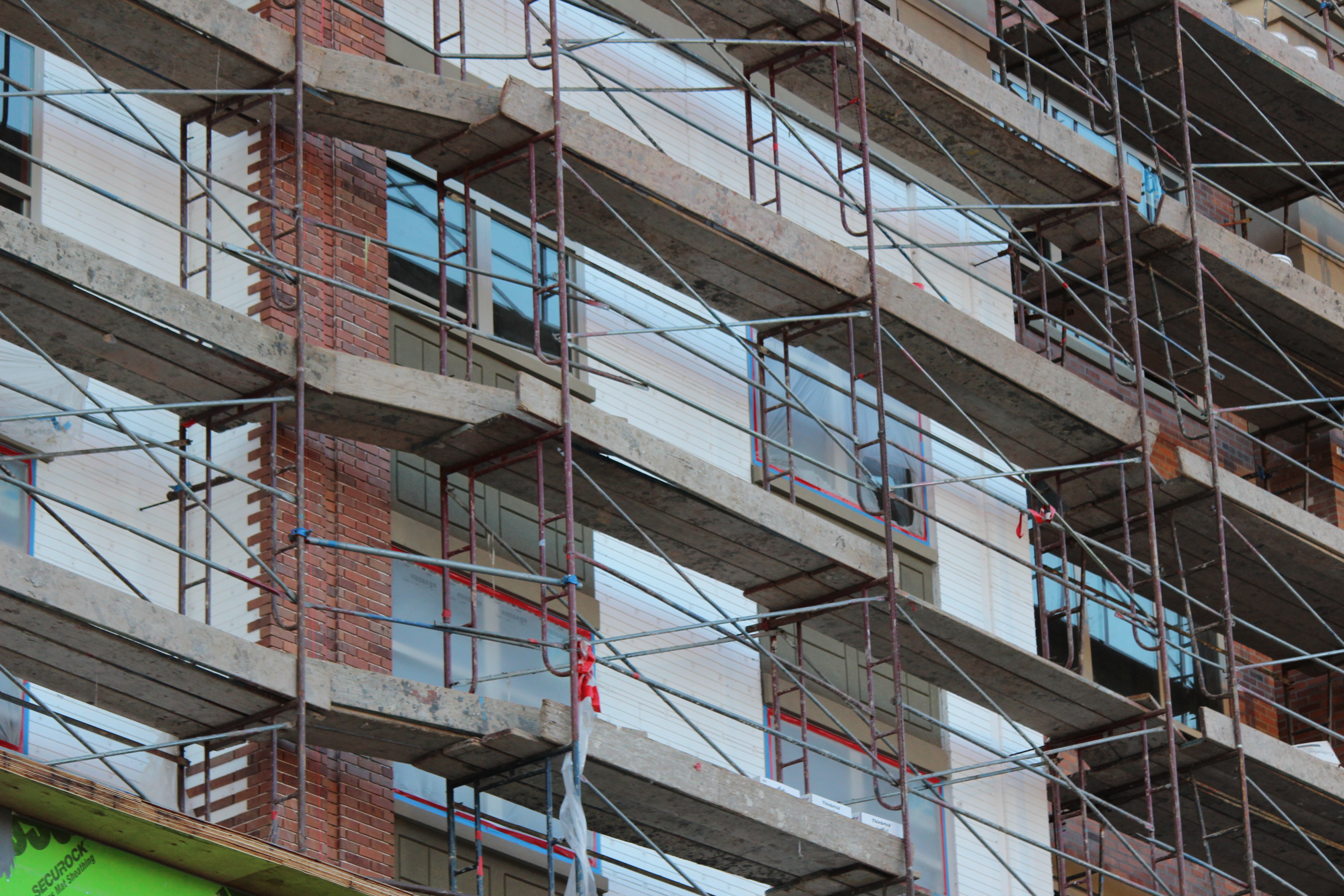

Where the Detailing Challenges Begin

CI wall systems work well in theory—until thin brick enters the picture. Architects know the value of insulated exterior envelopes, but thin brick veneer introduces a set of detailing problems that most insulation-only assemblies don't face: attachment loads, moisture pathways, thermal bridging at ties, and alignment tolerances that affect both performance and appearance.

This article breaks down exactly where those complexities show up and how integrated thin brick wall systems address them at the design stage.

Thermal Bridging: The Hidden R-Value Drain

CI assemblies are designed to create a thermal break around the building envelope. But with thin brick, you need attachment points—ties, clips, or mechanical fasteners—that pass through the insulation layer. Research from Payette's thermal performance study found that masonry veneers often perform at a 25 to 60 percent decrease in R-value compared to theoretical calculations.

Traditional brick ties spaced at 16 to 24 inches on center can contribute up to a 15 percent decrease in thermal performance. Combined with steel shelf angles at slab edges, the total thermal bridging impact can reach 35 percent or more. That's not a rounding error—it's a code compliance issue.

Old Mill Building Products addresses this with the Panel+ Wall System, where the EPS foam panels deliver R-4.2 per inch at 75°F and eliminate the need for separate attachment systems that pierce the insulation layer. The thin brick veneer adheres directly to the panel face, keeping thermal breaks intact from sheathing to finish.

Moisture Management: Four Layers, Multiple Failure Points

In a conventional thin brick CI assembly, moisture control requires coordination between the weather-resistive barrier, the insulation, the drainage plane, and the veneer. Each layer is typically specified and installed separately, creating interfaces where detailing errors occur.

Common failure points include:

• Water-resistive barriers that lack continuity at panel joints
• Drainage channels blocked by adhesive squeeze-out or misaligned panels
• Flashing details that don't integrate with the insulation thickness
• Veneer attachment points that create capillary pathways through the insulation

According to the Building America Solution Center, the cavity behind brick veneer should be at least 1 inch wide and free from mortar droppings, with air inlets at the base and outlets at the top for back-ventilation. Meeting these requirements while maintaining insulation continuity requires precise coordination between trades.

The Panel+ system consolidates these functions. Built-in drainage and ventilation channels are engineered into the EPS panels, and the fluid-applied adhesive method integrates Old Mill Air & Water Barrier directly with the adhesive layer. One system manages air control, water control, and insulation from the sheathing out.

Attachment Complexity: Competing Load Paths

Thin brick veneer creates two distinct structural demands: gravity loads (the weight of the brick pulling down) and lateral loads (wind pressure pushing in and out). In multi-story buildings, gravity loads are typically handled by shelf angles at each floor slab. Lateral loads require tie-backs into the structural wall.

Both attachment types create detailing challenges for CI assemblies:

Shelf Angles: These steel members typically run from close to the brick face back through the insulation to the structural slab. Building Science Corporation's research advocates for supporting shelf angles with evenly spaced brackets that hold the angle entirely outboard of the insulation, reducing the thermal impact from 35 percent down to 12 percent—or as low as 3 percent with stainless steel brackets.

Brick Ties: The type, material, and spacing of ties all affect R-value. Stainless steel ties spaced at 24 inches on center with minimal cross-section can reduce thermal impact to just 2 percent, compared to 15 percent for standard galvanized ties at tighter spacing.

With Panel+, attachment coordination simplifies. The veneer adheres directly to the panel surface using Old Mill Adhesive, eliminating the need for separate tie systems in many applications. For installations requiring mechanical attachment, the panels accept fasteners with Old Mill washers while maintaining the insulation envelope's integrity.

Alignment Tolerances: Where Trade Coordination Fails

Thin brick demands tighter alignment tolerances than most cladding materials. Joint widths, coursing, and plane consistency all show up in the finished product—and any variations in the substrate telegraph directly to the visible surface.

In conventional CI assemblies, substrate flatness depends on:

• Structural wall plumbness and plane consistency
• Insulation board thickness tolerance and installation quality
• Shim requirements at attachment points
• Basecoat thickness and screeding accuracy

Each layer adds tolerance stack-up. By the time the thin brick installer arrives, the substrate may be out of plane by 1/4 inch or more—enough to require spot leveling or, worse, full re-basecoating.

Panel+ panels are manufactured with precision-formed alignment grooves that establish exact brick coursing before installation begins. The result: crews install veneer to a predictable grid without field adjustment, reducing labor time by up to 60 percent compared to traditional lath and scratch methods.

Code Compliance: NFPA 285 and the Testing Gap

For buildings over 40 feet or four stories, NFPA 285 fire testing becomes mandatory for wall assemblies containing foam plastic insulation. The test evaluates the entire assembly—not individual components—under simulated fire conditions.

For architects specifying thin brick over CI, this creates a documentation challenge. The insulation, the adhesive, the veneer attachment method, and the thin brick itself must be tested together as a system. Mix-and-match specifications often fail to meet code because the specific combination was never tested.

Old Mill's Panel+ Wall System is NFPA 285 compliant as a tested assembly. The system includes coordinated components from the sheathing out: Old Mill Air & Water Barrier, Old Mill Adhesive, Panel+ EPS foam panels, and thin brick veneer. Specifying Panel+ means specifying a complete tested system rather than assembling components and hoping the combination passes review.

Field Coordination: Why Multi-Step Systems Add Risk

Traditional thin brick CI assemblies involve multiple trades working in sequence: framing, sheathing, weather barrier, insulation, lath, scratch coat, brown coat, and finally thin brick installation. Each handoff creates schedule exposure and quality risk.

The most common coordination failures include:

• Weather barrier damage during insulation installation
• Insulation compression at fastener locations
• Basecoat thickness variations that affect veneer bond
• Cure time delays between layers that extend project duration

Panel+ reduces the number of handoffs. The system can be installed using two approved methods: the fluid-applied adhesive method, where Old Mill Adhesive creates drainage channels and bonds the panels directly; or the mechanically fastened method, where panels attach with Old Mill washers and approved fasteners over a drainable building wrap. Both methods consolidate what would otherwise be four to six separate installation steps into two.

What Integrated Systems Solve

The detailing complexity in thin brick CI assemblies comes from coordinating separate components designed for general use rather than specific veneer applications. Each component solves one problem while creating interface challenges with the next layer.

Old Mill Building Products' Panel+ Wall System takes a different approach: one system from sheathing to veneer, with components engineered to work together. The result addresses the five core challenges architects face:

• Thermal bridging: Direct veneer adhesion eliminates through-insulation fasteners
• Moisture control: Built-in drainage and ventilation channels with integrated air and water barrier
• Attachment loads: Adhesive bond strength tested for the specific veneer weight
• Alignment tolerances: Precision-formed coursing grooves in the panel face
• Code compliance: NFPA 285 tested assembly with documented fire performance

For architects and designers specifying thin brick facades with CI performance requirements, Panel+ offers a path from concept to punch list with fewer coordination points and documented system performance.

Frequently Asked Questions

Why does thin brick create more CI detailing challenges than other claddings?

Thin brick requires precise alignment, has higher weight per square foot than many claddings, and shows substrate irregularities more visibly than textured finishes. These factors compound the standard CI challenges of thermal bridging and moisture control.

How much does thermal bridging reduce effective R-value in traditional thin brick CI assemblies?

Research shows reductions of 25 to 60 percent depending on attachment methods. Steel shelf angles alone can account for 35 percent R-value loss; brick ties add another 5 to 15 percent depending on material and spacing.

What makes NFPA 285 compliance difficult with thin brick CI assemblies?

NFPA 285 tests complete assemblies, not individual components. Architects specifying components from different manufacturers must verify the specific combination has been tested together, which often isn't the case with mix-and-match specifications.

How does Old Mill Panel+ address drainage plane requirements?

Panel+ EPS panels include built-in cross-drainage channels engineered into the foam. In the fluid-applied adhesive method, vertical drainage channels are created when Old Mill Adhesive is combed with a 1/2-inch notch trowel. Both methods maintain the drainage cavity without separate drainage mat installation.

What R-value does Panel+ deliver?

Panel+ delivers R-4.2 per inch at 75°F. Standard thicknesses range from 1 inch to 4 inches, with custom options available. A 4-inch panel delivers approximately R-17 in insulation value before accounting for the complete wall assembly.
